A real-world 8085 project

Soon after writing my text about building your own MCU/CPU project Lewis Stockill <mstockill@aol.com> emailed me about a small 8085 system he was building as a hobby. I helped him to debug the system a bit (via email) and he immediately agreed that it would be a nice idea to describe the project in some detail in the Chipdir for others to learn from.

Why use the 8085 one might ask. Well it's a straight and simple traditional 8-bits processor with hardly any strange quirks, except perhaps that the data bus is combined with the lower part of the address bus to save pins. This trick is often used and you only need a one way latch to keep the address stable while the bus is used for data in the second halve of the memory cycle. The 8080 and even the later 8086/8088 need two 82xx series support chips, whereas the 8085 can work on it's on (except for the latch).


The final schematics of the project

local JPG file of the Autocad schematic (390 Kbyte)
(This map doesn't seem to be downloadable from www.hitex.com/chipdir/ so you may have to get it from another mirror site.)

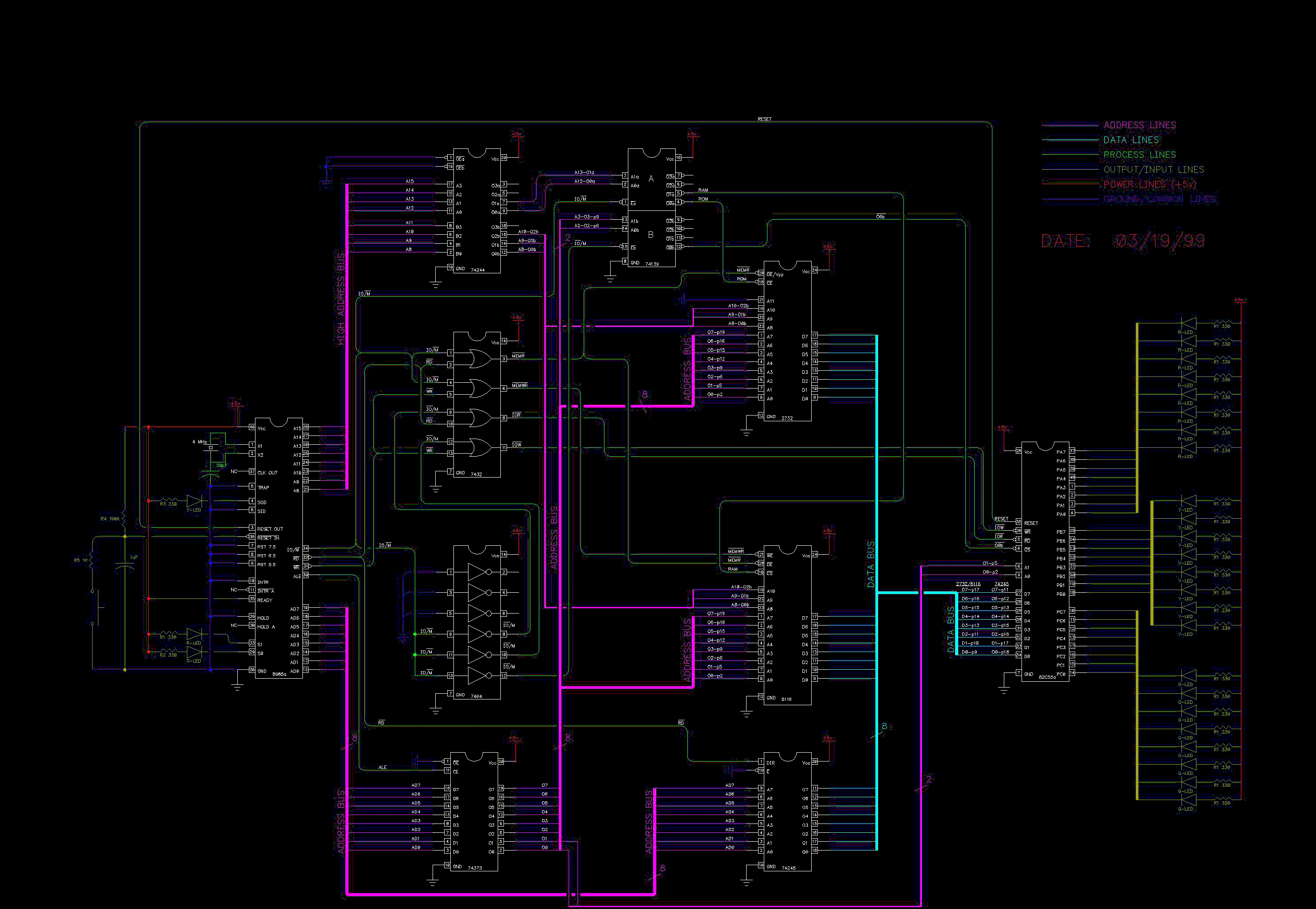

The last completed CAD* image of the 8085 circuit design (without the 7-segment display).


A photo of the finished project

An image of the finished boards

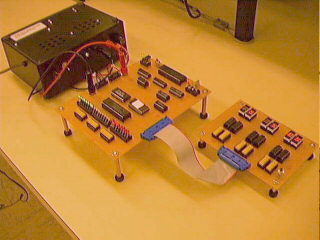

The completed 8085a unit along with the power supply that Lewis built and a 7-segment display unit. The photo shows the computer in operation.



The designer at work designing

The designer at work designing

A photo of Lewis at work, designing the project.


Tips from Lewis

Here are a few tech tips for future designers/builders of 8085 circuit:
Initially build the circuit without using CMOS* chips. If wiring errors are encountered then it may be nearly impossible to diagnose the circuit since erratic oscillations will most likely occur.
Once the circuit is up and running with TTL chips (LS*), then swap out all TTL's for HCT*'s or other CMOS* equivalent IC*'s. The circuit should run fine.
When writing code for this or any ROM/RAM chips, be careful as to addressing. ROM and RAM are most likely of different sizes (as in the case of this circuit (4K ROM, 2K RAM), and initializing the stack pointer is very crucial (1800H in this case.)

Thanks for your help Jaap, and I'll keep you posted on other future projects that may be of interest to you or others. This was a fun and challenging project, and who knows, with all the Y2K hoopla this little "re"-design may come in handy for some future young repair tech.


Advertisement

Test software

************************************
Here is a test program in assembly language that will work:


; ******* Program 4 ******************
; LED lighter with inline delay
	.ORG	0
	JMP	MAIN
MAIN	.ORG	100H
	LXI	SP,1800H
	NOP
	MVI	A,10000000B
	OUT	CTRLW
	MVI	A,7FH
LOOP	OUT	PORTA

	; save to memory
	STA	SAVE

	; read from memory
	; (need to save value in A)
	MOV	E,A
	MVI	A,0
	LXI	H,SAVE
	MOV	A,M
	OUT	PORTB
	MOV	A,E

	OUT	PORTC

	; inline delay
W2	DCR	C
	JNZ	W2
	DCR	D
	JNZ	W2
	DCR	B
	JNZ	W2

	RRC
	JMP	LOOP

	NOP
PORTA	.EQU	0
PORTB	.EQU	1
PORTC	.EQU	2
CTRLW	.EQU	3
SAVE	.EQU	1000H

	.END	100H
	.END
